SWISS SUBSTRAT
TOITVERT.CH is developing the first extensive local 100% substrate.
THE FIRST SUBCONTRACT 100%
LOCAL!

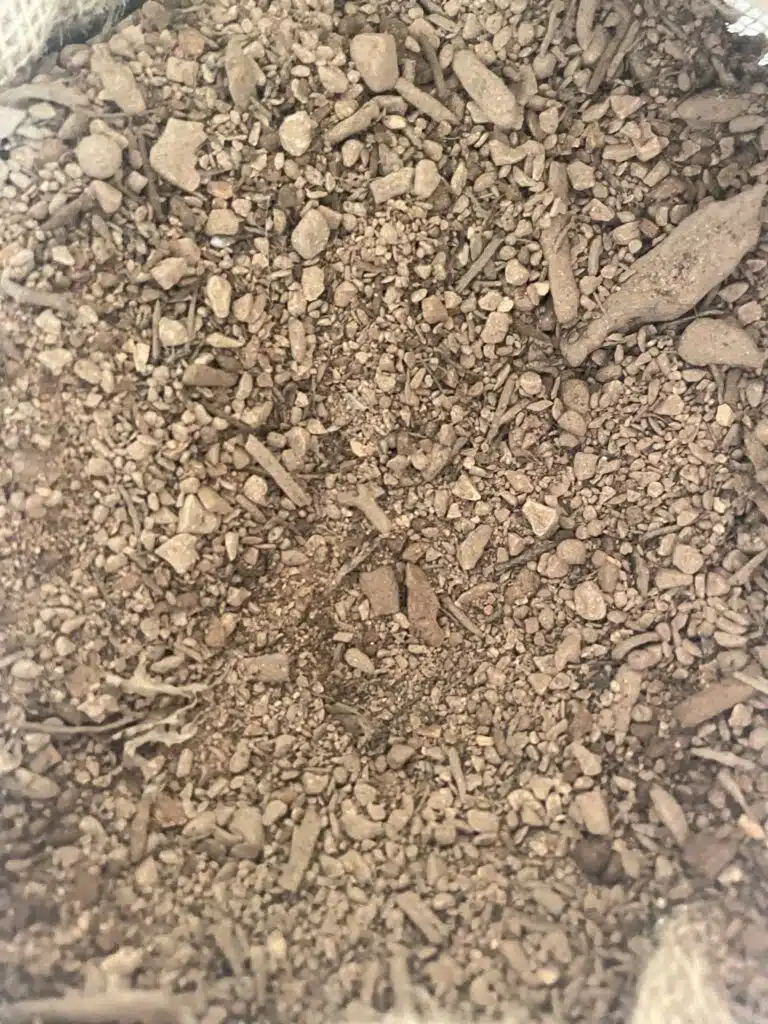

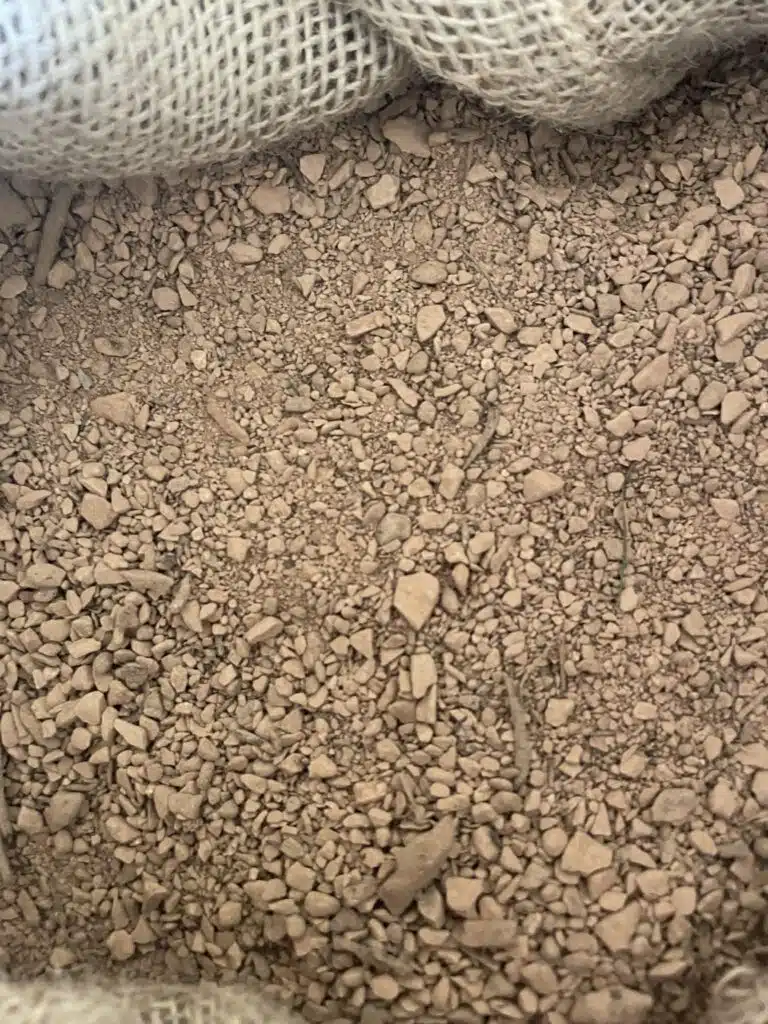

Substrate from 100 % of local raw materials 3/8 mm crushed tile (Corcelles-sous-Payerne, VD) and fibrous agricultural compost (Lavigny, VD). This substrate is formulated in accordance with the requirements of standard SIA 312:2010, which defines the minimum mechanical, hydric and physical characteristics for extensive green roofs.
Grain size in accordance with SIA 312:2010 The mineral fraction has a continuous particle size distribution, mainly between 2 mm and 12 mm. The proportion of fines (< 0.063 mm) is less than 5 % by dry mass, which guarantees good permeability and prevents clogging of the drainage layers.
Its light, porous mineral base ensures infiltration and storage of rainwater, while the organic fraction provides long-lasting water retention and microbial activity.

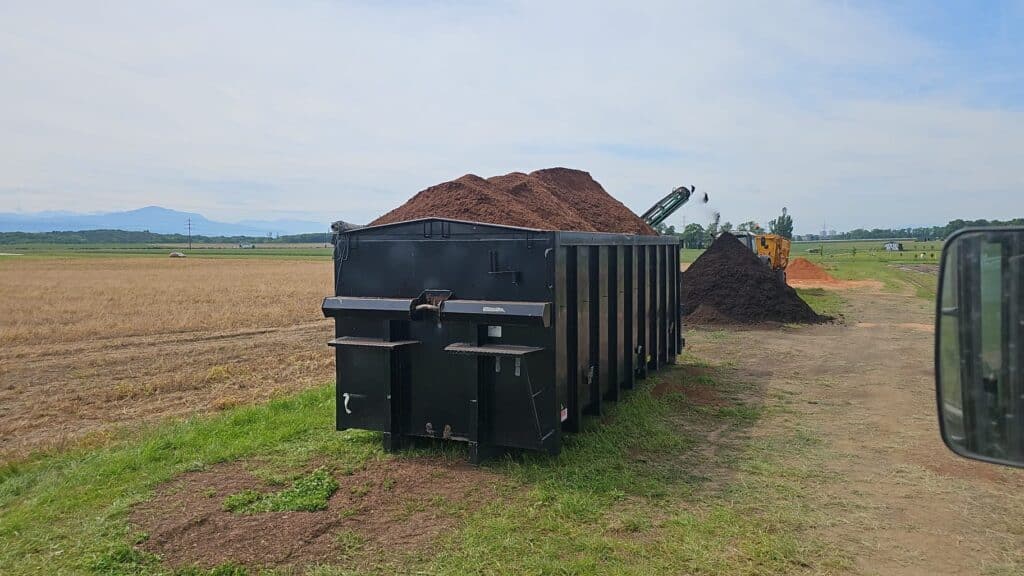

Mixture brewed and sieved in Luins (VD) - logistical radius ≤ 100 km.
SWISS Sedum - Varieties and Prices

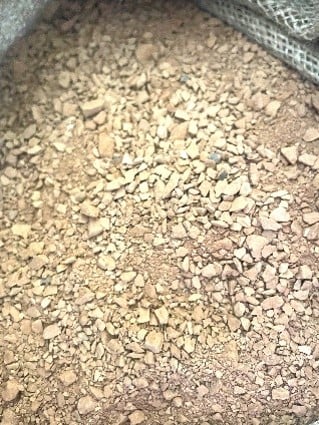

Substrate for urban greening - Origin 100% VD
Mineral mat: 100%
Organic material: 0%
Minimum order subject to quotation
Substrate for urban greening - Origin 100% VD
Mineral mat: 85%
Organic material: 15%
Minimum order subject to quotation
Substrate for urban greening - Origin 100% VD
Mineral mat: 70%
Organic material: 30%
Minimum order subject to quotation
EXTENSIVE SUBSTRATE SWISS SUBSTRAT

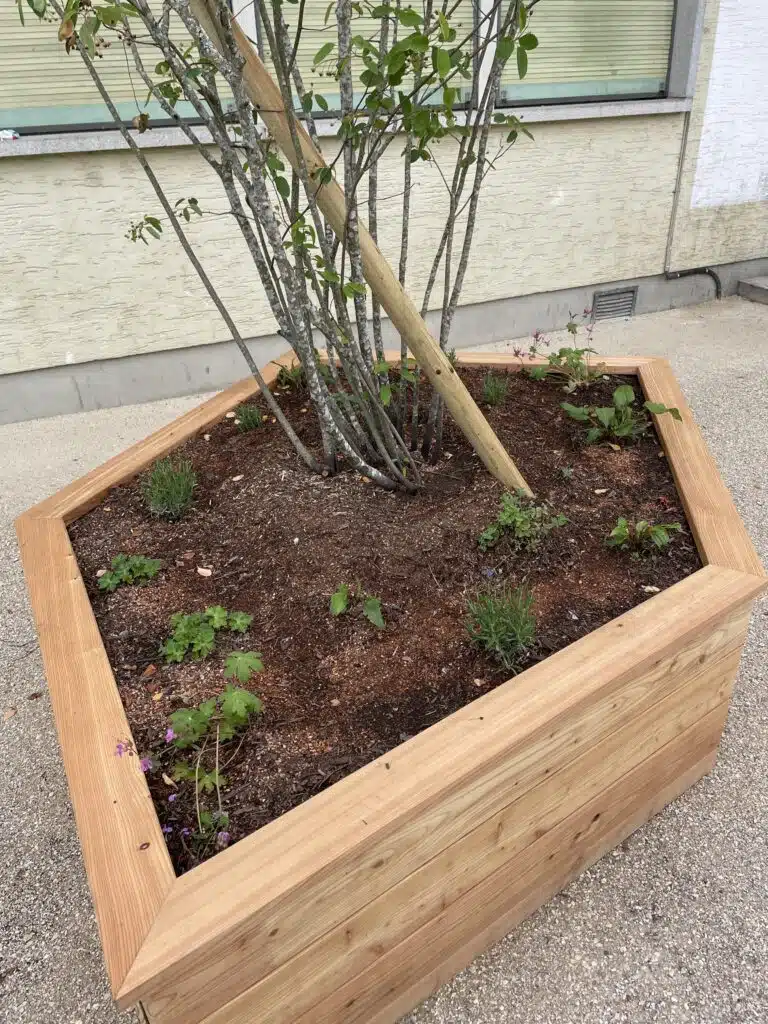

Growing medium developed in accordance with SIA standard 312 - Lightweight organic mineral substrate for extensive roofs. It is also recommended for planting Mediterranean perennials in poor soil.
Composition
|
Fraction |
Material |
|---|---|
|
Mineral |
Crushed roof tile (Corcelles-sous-Payerne) |
|
Organic |
Fibrous compost (Lavigny) |
Origin of components
|
Component |
Source |
|---|---|
|
Crushed tile |
Corcelles-sous-Payerne (VD) |
|
Fibrous compost |
Lavigny (VD) |
Chemical characteristics (average analyses - in accordance with SIA 312)
|
Parameter |
SIA target value |
|---|---|
|
pH (H₂O) |
5.5 - 8.5 |
|
Conductivity (1/1.5) |
≤ 3.5 mS/cm |
|
Dry matter / crude |
> 40 % |
|
Organic matter / crude |
< 65 % |
|
Density at CME |
< 1’200 g/l |
|
CEN density |
– |
Physical characteristics in accordance with SIA 312
|
Parameter |
SIA target value |
|---|---|
|
Total porosity |
≥ 45 % |
|
Water at pF 1 |
– |
|
Air at pF 1 |
≥ 10 % |
|
Useful macroporosity (LK) |
≥ 20 % |
|
Useful water retention capacity (nFK) |
≥ 20 % |
|
Total volume of water available (rVK) |
≥ 45 % |
Uncompacted density
|
Status |
Density (kg / m³) |
|---|---|
|
Dry MVA |
± 1 050 |
|
MVA stock |
± 1 100 |
|
Saturated MVA (water) |
± 1 400 |
Surface weight of the complex (SIA 312, base 10 cm)
|
Thickness (cm) |
8 |
|---|---|
|
Weight stock (kg / m²) |
88 |
|
Weight saturated (kg / m²) |
112 |
Useful water retention capacity (nFK)
|
Thickness (cm) |
8 |
|---|---|
|
Available water (L / m²) |
43 |
Packaging & logistics
- Bulk (tipper or blower truck)

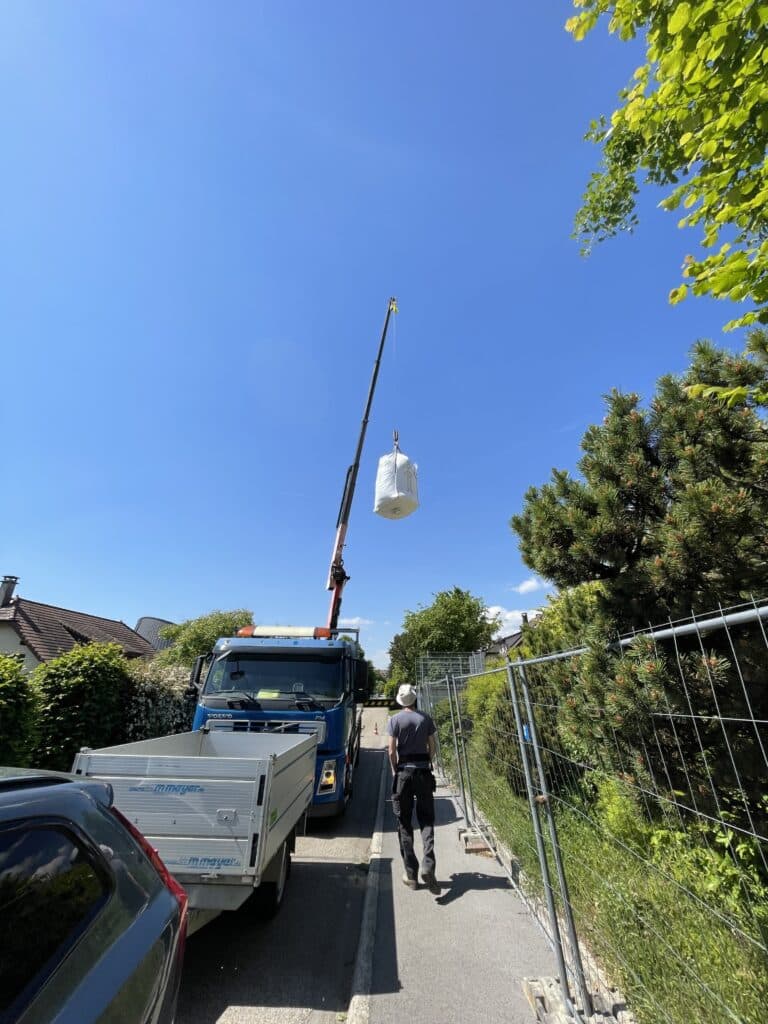

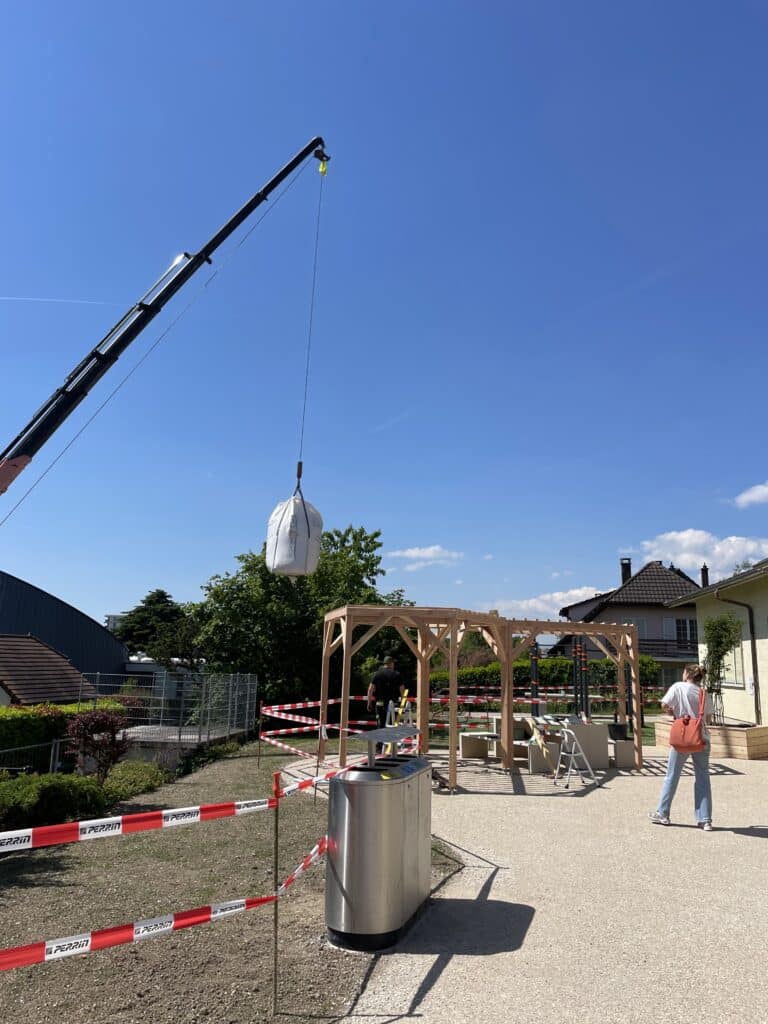

- Big-Bag 1 m³ (≈ 1 300 L)
